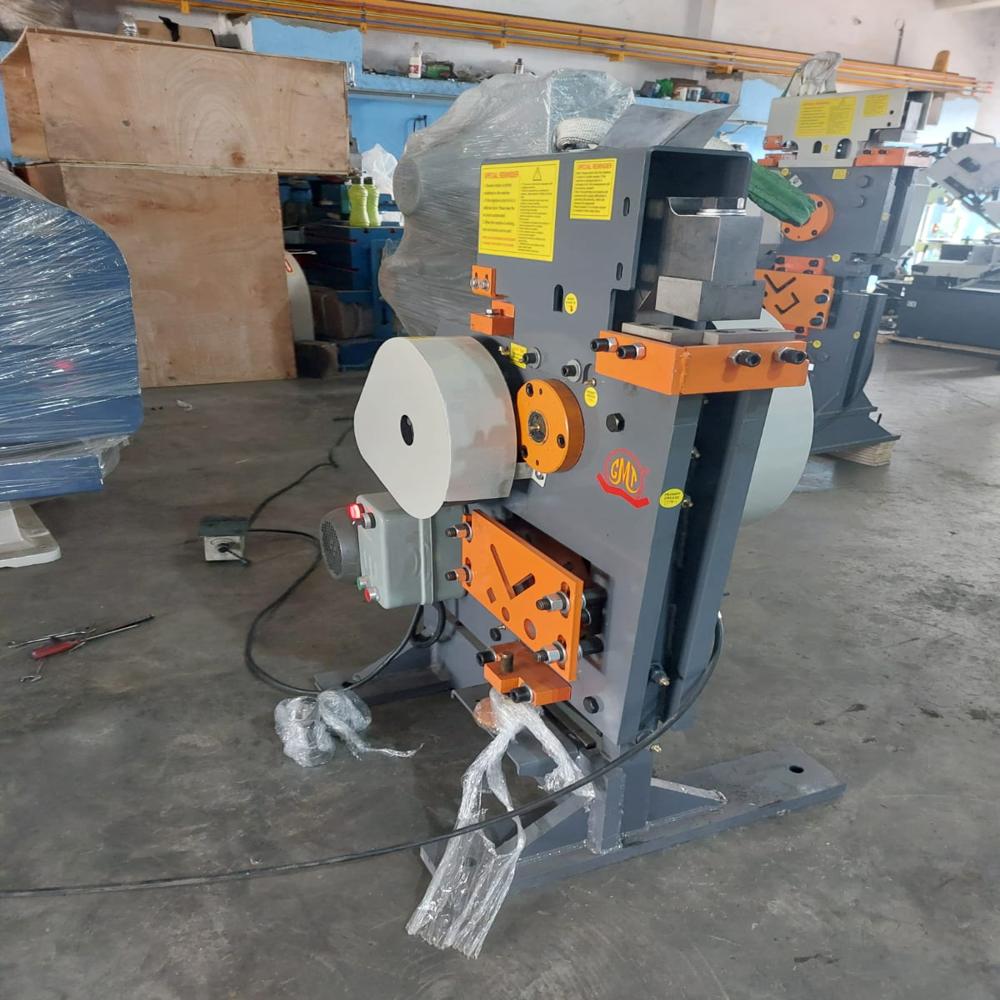

QA32-10B MECHANICAL IRON WORKER MACHINE

QA32-10B MECHANICAL IRON WORKER MACHINE Specification

Features
Multi-functional, Heavy-duty Construction, Durable, Precise Operation

Operating Temperature
5C - 45C

Cooling System
Air Cooling

Machine Type
Mechanical Iron Worker

Voltage
380V / 415V

Control System
Manual / Foot Pedal

Power Rating
7.5 kW

Noise Level
75 dB

Lubricating System
Automatic Lubrication

Model No
QA32-10B

Accuracy
0.1 mm

Production Capacity
Up to 30 pcs/min

Frequency
50Hz / 60Hz

Motor Power
7.5 kW

Drive
Mechanical

Frame Type
C-Frame

Product Type
Cutting Machine

Technology
Other

Power Source
Electricity

Operating Type
Semi Automatic

Power
7.5 kW

Pressure
1000 kN

Surface Treatment
Painted / Anti-rust Coating

Dimension (L*W*H)
1800 x 800 x 1800 mm

Weight (kg)
1100 kg

Color
Yellow & Green

Usage & Applications
Punching, Notching, Shearing, Bending, Angle & Bar Cutting

Stroke Length
36 mm

Flat Bar Cutting Capacity
150 x 10 mm

Standard Accessories
Punch Dies, Shear Blades, Foot Pedal

Max Punching Thickness
16 mm

Maintenance
Low Maintenance, Easy Access Points

Max Shearing Thickness
10 mm (Plate Steel)

Angle Cutting Capacity
100 x 100 x 10 mm

Cycle Time
2 Seconds

Electrical Protection
Overload protection included

Number of Work Stations
5

Safety Features
Safety Guard Provided

Ram Adjustment
15 mm

Round Bar Cutting Capacity
32 mm

Operating Humidity
90% RH

Approach Stroke
15 mm

QA32-10B MECHANICAL IRON WORKER MACHINE Trade Information

Minimum Order Quantity
1 Number

Supply Ability
Number

Delivery Time
7 Days

About QA32-10B MECHANICAL IRON WORKER MACHINE

SPECIFICATIONS :-

MAX PUNCHING FORCE : 50 TON

CUTTER TRAVEL : 30 MM

CUTTER SPEED : 30 TIMES / MIN

FLAT CUTTING : 230 X 10 MM

ROUND & SQUARE CUTTING : 20 MM

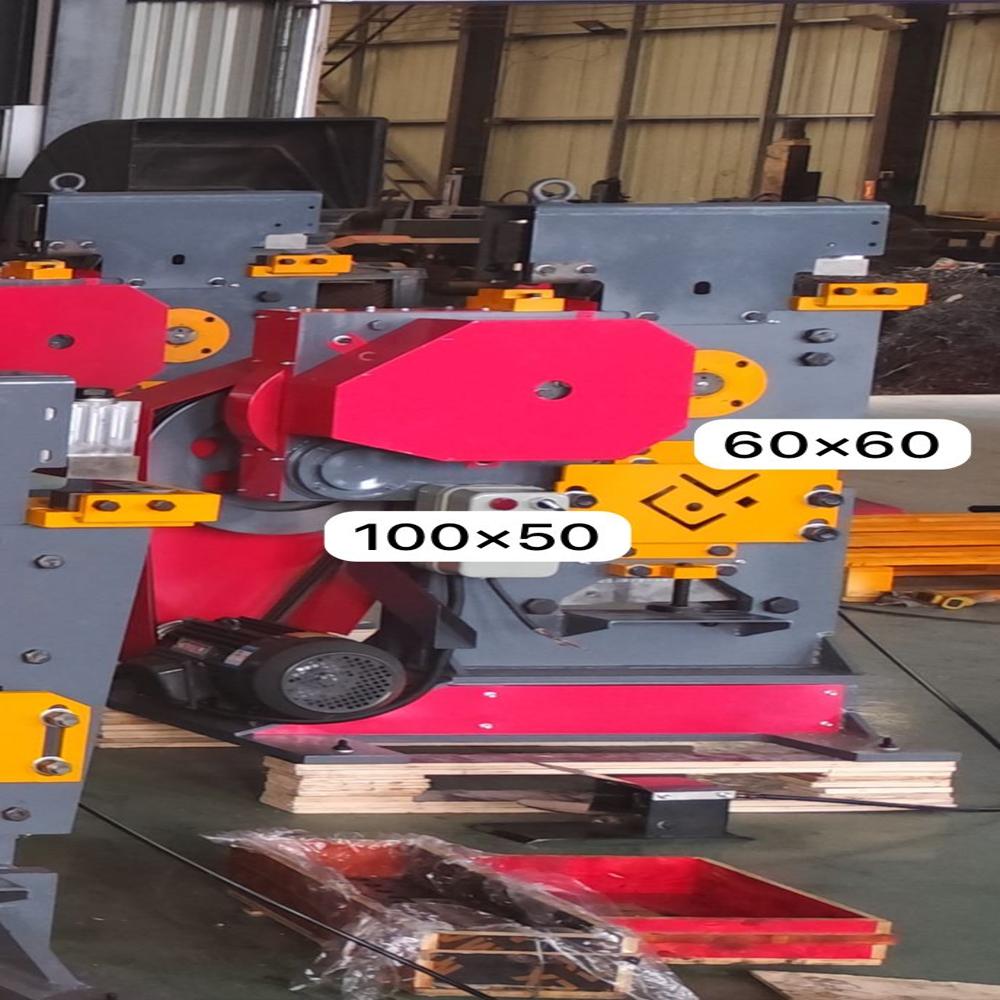

ANGLE CUTTING : 60 X 60 MM

CHANNEL CUTTING : 100 X 50 MM

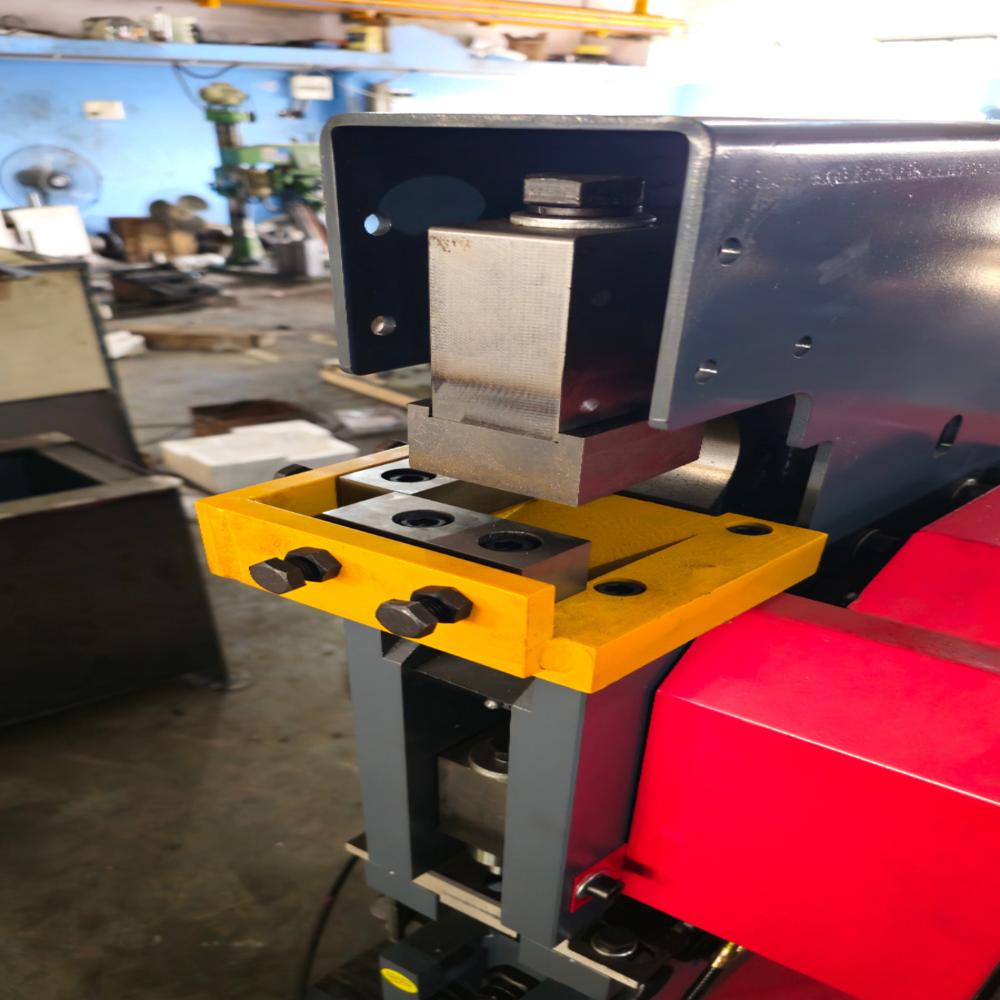

ROUND / CAPSULE HOLE PUNCHING : 16 MM / 16 X 30 MM

MOTOR : 3 KW

APPROX WEIGHT : 710 KG

MACHINE DIMENSION : 900 X 600 X 1200 MM

Versatile and Powerful Capabilities

The QA32-10B excels at managing diverse metal processing needs. Its multiple stations allow seamless transitions between punching, bending, notching, and cutting, while the robust drive system delivers a consistent cutting force of 1000 kN. Adaptable for flat bar, round bar, and angle sections, it's engineered for demanding production settings.

Efficient and Safe Operation

Engineered with precision, the QA32-10B features advanced safety mechanisms, including overload protection and a comprehensive safety guard. With a user-friendly manual or foot pedal operation, cycle times are kept to a swift 2 seconds, ensuring both efficiency and operator safety during all tasks.

Low Maintenance and High Durability

Constructed with durability in mind, this mechanical iron worker requires minimal upkeep. Its anti-rust coated, painted frame, automatic lubrication, and easily accessible maintenance points ensure long-term operation under tough workshop conditions, keeping downtime and running costs low.

FAQ's of QA32-10B MECHANICAL IRON WORKER MACHINE:

Q: How does the QA32-10B Mechanical Iron Worker Machine enhance productivity in metal fabrication?

A: The QA32-10B streamlines production with its multiple work stations, enabling fast transitions between punching, shearing, bending, and cutting tasks. Featuring a quick cycle time of 2 seconds and the capability to produce up to 30 pieces per minute, it significantly increases output while maintaining accuracy.

Q: What types of materials and shapes can this machine process?

A: This machine is proficient in handling plate steel up to 10 mm thick, angle bars up to 100 x 100 x 10 mm, flat bars up to 150 x 10 mm, and round bars with a maximum diameter of 32 mm. It supports a wide variety of metalworking applications such as punching, notching, shearing, and bar cutting.

Q: When should I schedule maintenance for the QA32-10B Iron Worker?

A: Thanks to its low-maintenance design and automatic lubrication system, routine maintenance is minimal. However, periodic checks should be performed based on usage intensity and environmental conditions. The easily accessible service points facilitate quick inspections and maintenance when required.

Q: Where can this mechanical iron worker be installed effectively?

A: The QA32-10B is suitable for installation in metal fabrication workshops, manufacturing plants, and industrial environments where heavy-duty, multi-functional metal processing is required. Its robust construction and painted/anti-rust coating make it adaptable to challenging operating settings.

Q: What safety features are provided with this machine?

A: Operator safety is prioritized with an integrated overload protection system and a thoroughly engineered safety guard. These features help protect the user during operation and safeguard the equipment against electrical faults or excessive loads.

Q: How do I operate the QA32-10B Iron Worker?

A: Operation is straightforward-users can control the machine either manually or via the included foot pedal. The control panel allows for easy ram and stroke adjustments, ensuring precise results for each task. The machine's semi-automatic nature ensures convenience and control for every workflow.

Q: What are the key benefits of using this mechanical iron worker?

A: Major advantages include multi-functionality, high cutting and punching precision (up to 0.1 mm accuracy), rapid processing speeds, durable build for long service life, comprehensive safety features, and minimal maintenance requirements. This makes it a cost-effective and reliable choice for metalworking enterprises.
